Product Description
Summary

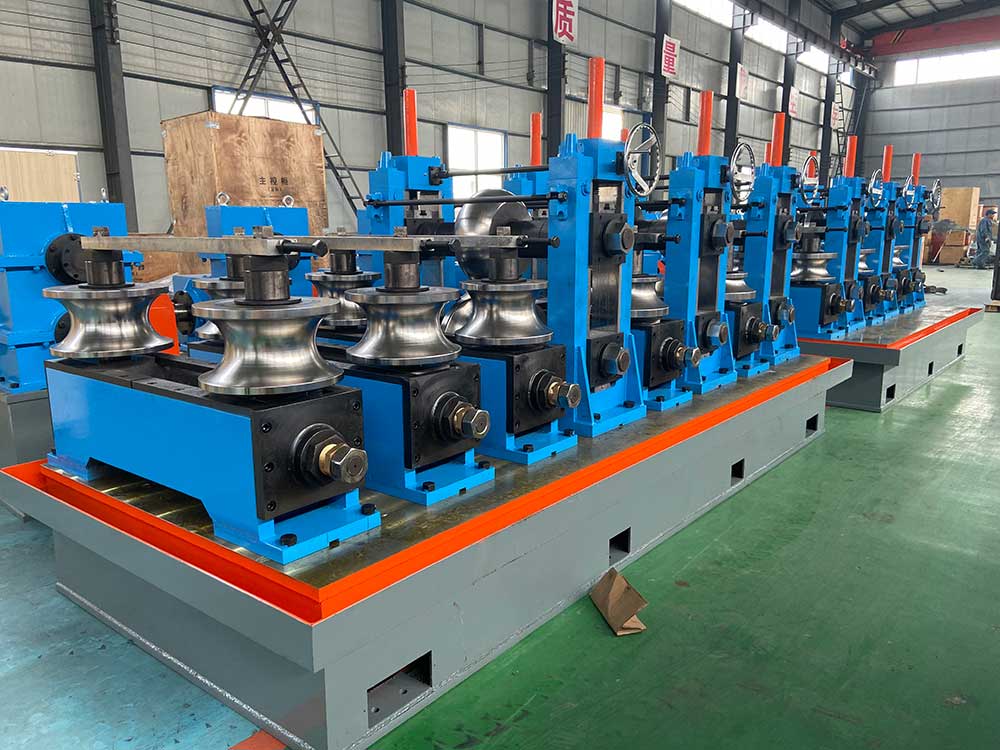

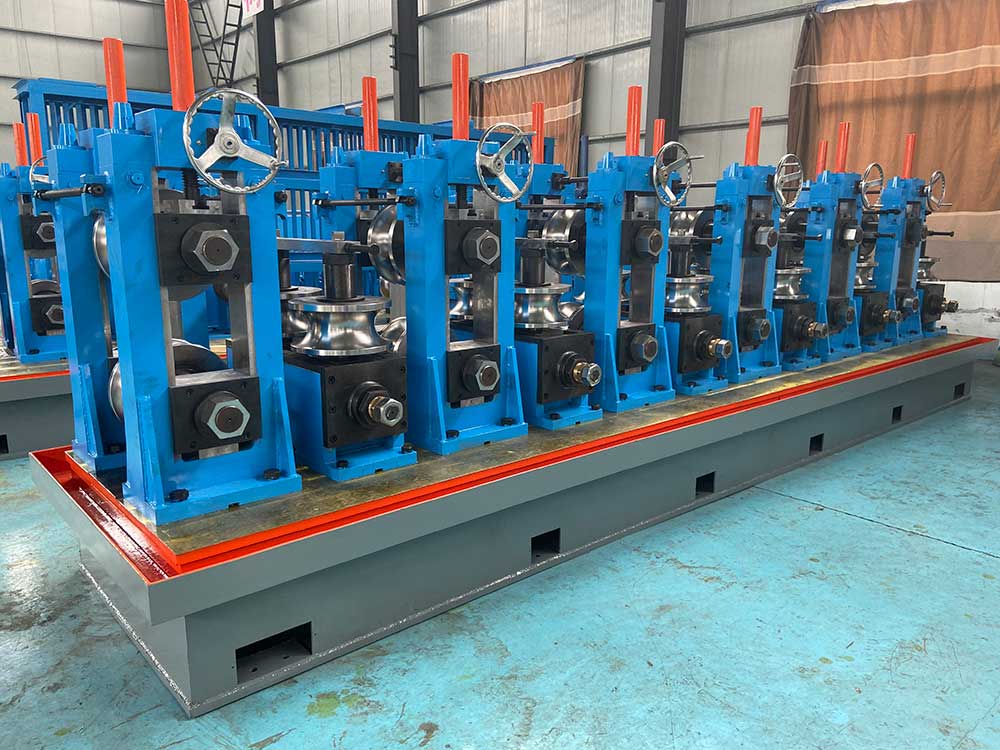

The mill is intended for manufacturing of round pipe of Φ89mm-Φ219mm with thickness of 3.0mm–8.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Specifications
The technical flow of the production line
{SteelTape}→→ Hydraulic Double-arbor un-coiler →→Strip-head Cutter and welder→→Spiral Accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame→→Cooling unit →→ Sizing section →→Friction saw
→→Rollout table
Products:
Carbon steel tube as per customer’s request:
|
: Min. Φ89mm, Max. Φ219mm |
|
|
Round Tube Thickness |
: Min.3.0mm, Max. 8.0mm |
|
Square Tube |
: Min.70X70mm, Max.170X170mm |
|
Rectangle Tube |
: Min.60X80mm, Max.150X200mm |
|
Sq & Rect. Tube Thickness |
: Min.3.0mm, Max.7.0mm |
|
Pipe Length |
: 6.0-12.0m |
|
Length Tolerance |
: ±3.0mm |
Line Speed : 20-50m/min
Technology:
|
Forming mothed |
: Round: traditional forming technology |
|
|
Square and rectangle: round to square |
|
Welding mothed |
: Solid State H.F. welding |
|
Feeding direction |
: Right or left side |
Power Source
|
Dynamic power |
: AC380V±10%, 3phases, 50Hz±1.0% |
|
Control Power |
: AC220V±10%, one phase, 50 Hz±1.0% |
Cooling water
|
Reservoir for High Frequency equipment |
: 35m3, 1 set |
|
Reservoir for circulating cooling water |
: 30m3, 1 set |
Compressed air
|
Pressure |
: 0.6Mpa |
|
Flow |
: 4.0m3/h |
